Pentair EasyTouch

Pentair discontinued the EasyTouch on September 29, 2023, and recommends the IntelliCenter in its place. That is stated plainly in its automation transition notice, alongside the same date for the IntelliTouch on July 31 of that year.

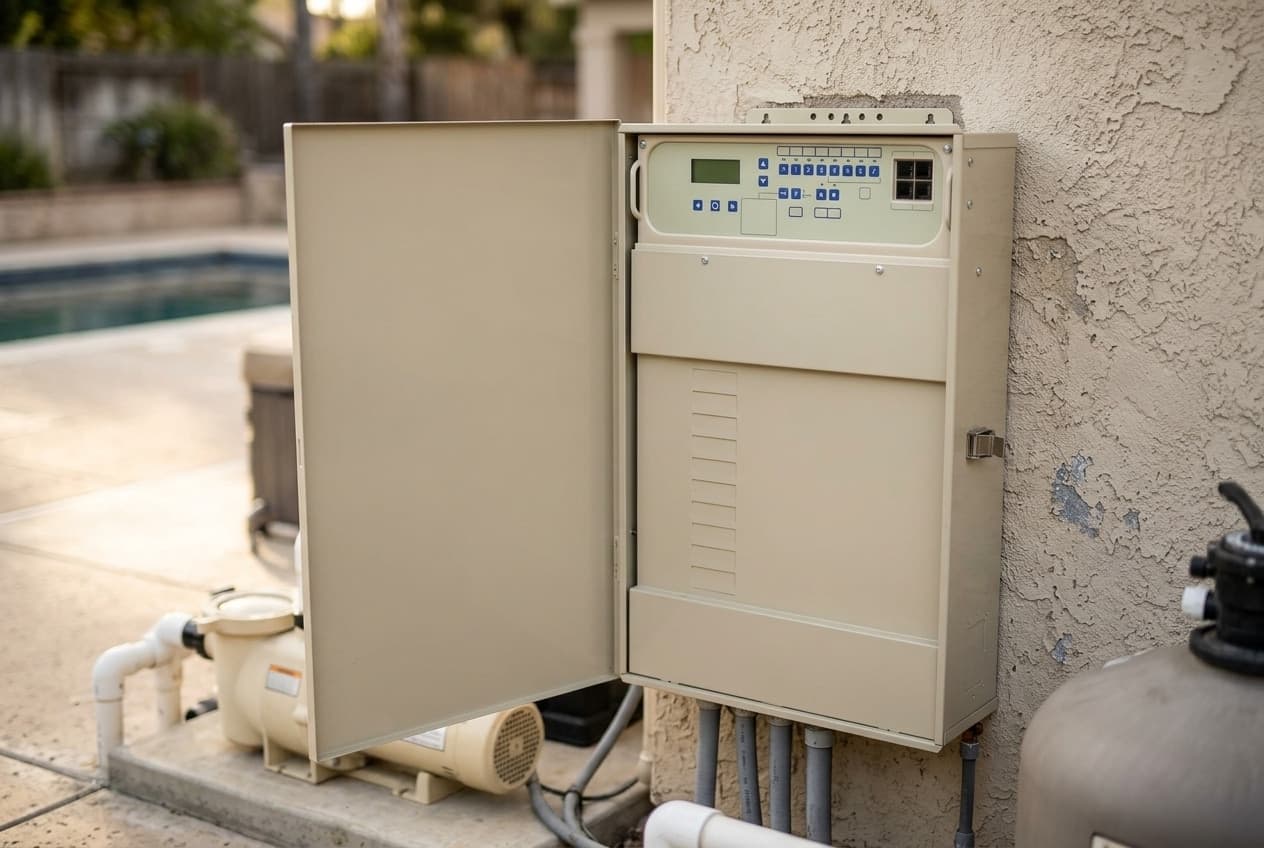

Which makes this a page about a system you already own rather than one you are choosing. There are a great many EasyTouch load centers still on walls, and they will keep running for years — the questions worth answering are what you have, what you can still get for it, and what Pentair has committed to.

Reading the model number

The badge on the door says EasyTouch. The number that matters is on the system, and it decodes cleanly once you know the pattern.

EasyTouch [4 or 8] [P] [SC-ICxx] [-C]

• 4 or 8 — the number of auxiliary circuits
• P — single body, meaning pool only. No P means pool and spa, and those systems ship with two valve actuators
• SC-ICxx — the salt chlorinator transformer is built in and an IntelliChlor cell of that size came with it
• -C — Canadian, sold salt ready with the cell ordered separately

So an 8SC-IC40 is eight circuits, pool and spa, with salt integration and an IC40 cell. A 4P is four circuits, pool only, no salt.

The full numbers, because they are worth matching before ordering anything:

• 520538 EasyTouch 4 — Pool/Spa, and 520540 EasyTouch 8 — Pool/Spa
• 520591 EasyTouch 4P and 520703 EasyTouch 8P — single body
• 520542, 520543, 520544, 520545, 521150 — the pool/spa SC systems, IC20 through IC60
• 520592, 520593, 520704, 520705 — the single-body SC systems
• 520914 and 520915 — the Canadian 4P-C and 8-C

Whether you can add salt later is decided by the transformer

The base systems — 520538, 520540, 520591, 520703 — are listed in Pentair's own user's guide under the heading EasyTouch control systems without IntelliChlor transformer built in.

That is not a software limitation. There is a physical transformer inside the load center on the SC models and not on the others, so adding an IntelliChlor to a base EasyTouch means fitting one: 520722 before Pentair's change date, 521441 after it. There is a CG board too, 520723 or 521218, that drives the cell.

Worth knowing in both directions. If you are quoted for a salt conversion on an EasyTouch, those parts are either in the quote or the system already has them. And if a cell has stopped producing on a system that used to work, the board and its fuse are inside the load center and are cheaper than a cell — the salt cell diagnosis puts them in order.

The change date Pentair never dates

This is the thing that makes ordering EasyTouch parts go wrong, and it is visible on the parts sheet if you read the descriptions.

Roughly half the entries appear twice, once before change date and once after change date:

• Load center system transformer — 520653, then 521233
• Load center door — 520655, then 521227
• High voltage cover panel — 520651, then 521051Z
• IntelliChlor system transformer — 520722, then 521441
• IntelliChlor CG board — 520723, then 521218
• IntelliChlor fuse — 520714Z at 10 A, then 521142Z at 12 A and 50 V
• Load center — 520656, then 521057Z

The sheet never says when the change date was.

This page used to offer a tell from the last item on that list: the sheet gives the original load center as 150 amps with ten breakers and the later one as 125 amps with eight, so counting breaker positions would show which side you are on. It does not hold up. The IntelliTouch parts sheet, published the same week, gives the same later number, 521057Z, as a 150 amp, 10 circuit breaker base. The current installation guide, which covers both systems, rates the load center at 150 amps. So the later load center is probably not the smaller one, and the breaker count is not a reliable test. The IntelliTouch page sets out every source.

Pentair does publish one physical test, for choosing an upgrade kit rather than parts. Its current catalog sorts load centers by the cutout in the control panel's bezel: rectangular on those built from 2003 to 2012, square from 2012 to 2023. Whether that lines up with this sheet's change date, Pentair does not say.

A second, separate dated split exists on the wireless side: the ScreenLogic transceiver is listed as mid-2016 onward, part 522620.

What Pentair committed to

The transition notice contains a sentence worth keeping, because it is a specific obligation rather than reassurance:

Products moved to obsolete status will continue to be supported, and Pentair will replace legacy systems under warranty with comparable equipment while parts are available. If replacement parts needed to fulfill warranty claims are unavailable for existing systems, Pentair will provide the IntelliCenter Upgrade Kit for EasyTouch, EasyTouch Lite, and IntelliTouch.

On a discontinued system with a finite parts supply, that is the answer to "they cannot get the board any more." If the repair is a warranty repair and the part does not exist, Pentair's published position is that you get the upgrade kit, which puts IntelliCenter boards into the load center you already have. Worth quoting back.

Moving to an IntelliCenter without replacing everything

Pentair publishes two routes and the cheaper one is easy to miss.

The upgrade kits reuse your load center. They are listed as IntelliTouch/EasyTouch to Next Gen Upgrade Kit and they fork on which load center you have:

• Legacy load center, 2003 to 2012, rectangular bezel cutout — 522045 for i10P, 522046 for i10PS, 523218 for i10D, and 523530 for expansion
• Common load center, 2012 onward, square bezel cutout — 522047 for i10P, 522048 for i10PS, 523049 for i10D, and 523529 for expansion

The 2023 transition notice prints the second i10D kit as 522049. Pentair's current catalog and the kit's installation guide both give 523049, which is the number to order.

Or a whole system, and Pentair maps every EasyTouch part number to its IntelliCenter equivalent. A few of the common ones: 520540 and 520703 both map to 521904; 520538 maps to 521907; 520545 maps to 521903. Pentair notes that the IntelliCenter equivalent generally adds a relay, or adds pool and spa support, or adds IntelliValve actuators — so the mapping is not always like for like, and the difference is usually in your favor.

One hop to add, though. Pentair consolidated the IntelliCenter lineup from twenty-two items to six in 2026, and 521904, 521907 and 521903 are all legacy numbers on that sheet now. The mapping above still gets you to the right system — it just needs the 2026 cross-reference after it, where most of those land on 524001.

The capability gap is real, if you want it. Where an EasyTouch handles one heater and eight pumps, the IntelliCenter is specified for two heaters, sixteen pumps, forty relays and ten valves.

The last firmware, and the modes that look like faults

EasyTouch firmware stopped at 2.190, released in June 2021. EasyTouch Lite stopped at 1.020. There will not be another, which is worth knowing if you are chasing a bug rather than a fault.

Two operating modes account for a lot of calls that are not faults:

• Service mode lets equipment be run from the load center for testing, and while it is set, schedules do not run
• Time Out mode suspends programs temporarily and resumes them automatically several hours later, so nothing has to be reprogrammed

Pentair's own answer to why colored lights will not change to the right color starts with checking the system is in AUTO and not in service or time out. The pool light troubleshooting guide covers the rest of what looks like a broken fixture and is not, and the IntelliBrite page explains why counting power interruptions is how those lights choose a color in the first place.
