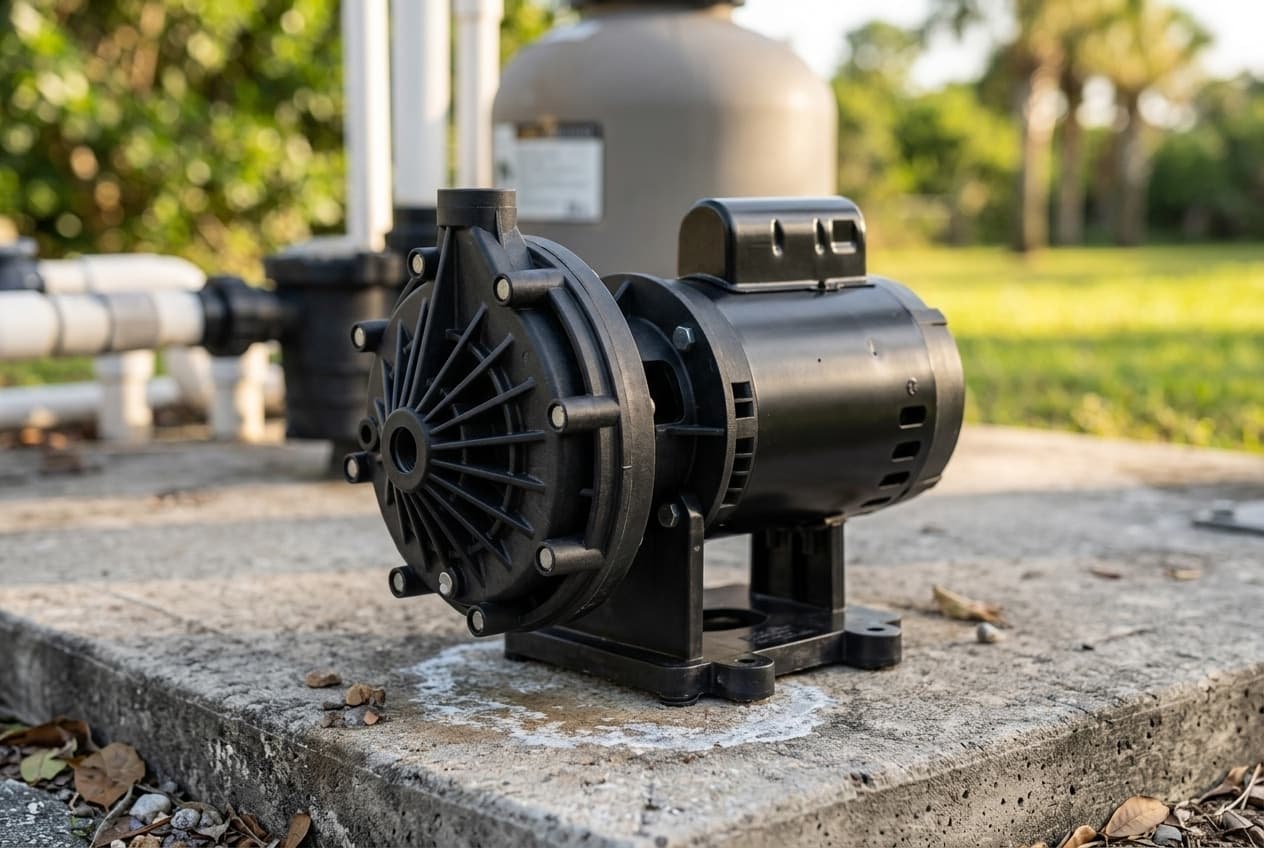

Pentair LA01N booster pump

This is Pentair's booster pump, and the word that matters on it is universal — Pentair says it suits any pressure-side cleaner that needs a booster, not only its own. So it is a direct alternative to the Polaris PB4-60 on a Polaris cleaner, which is not true of most equipment pairings on a pool pad. On Pentair's own side, the Kreepy Krauly Platinum manual calls for a ¾ horsepower booster on a dedicated 1½-inch cleaner line.

Pentair also sells the Boost-Rite, which is not this pump under another name. That one runs five impeller stages against this one's single impeller, and makes 50 psi at 13.2 GPM where this makes 50 at 12 — so the choice between them is a real one, and it mostly comes down to whether you would rather buy a cheap impeller or a hydraulic kit when it wears.

It is sold as ¾ HP and documented as 1.13, and both are right

Look it up at a retailer and it is a ¾ HP booster pump. Open Pentair's own manual and the first line of the specification reads: "This booster pump is a 1.13 horsepower pump with a 1.0 service factor."

Neither is wrong. Service factor is how much a motor is rated to exceed its nameplate continuously, and this one is ¾ HP with a 1.5 service factor:

0.75 × 1.5 = 1.125

Round it and you have Pentair's 1.13. The retailer is quoting the nameplate; Pentair is quoting total horsepower with the service factor already folded in, which is why it can say 1.0 service factor in the same sentence.

This is the single clearest example of something the pump sizing guide warns about: horsepower on a box is not a comparable number unless you know the service factor behind it. A "1 HP" motor with a 1.65 service factor is doing more work than a "1.5 HP" with 1.0, and two pumps advertised at different horsepowers can be the same machine.

What it actually produces is the useful figure: a minimum of 50 psi at 12 GPM.

Start it late and stop it early

Pentair gives a scheduling rule that Polaris does not, and it is the most practical thing in the manual:

The cleaner should start half an hour to forty-five minutes after the filter pump starts, and stop half an hour to forty-five minutes before the filter pump stops.

That offset exists because the pump is not self-priming. It needs the filter pump running and primed on both ends of the cycle — starting together risks the booster running before water reaches it, and stopping together risks it running after the water goes.

The consequence of getting it wrong is not subtle. Pentair: running the cleaner without the filter system in operation will void the warranty, and the failure it produces is a shaft seal, then an overheated impeller, then a motor.

Two practical notes that go with it. Pentair recommends a manual switch between the time clock and the booster pump, so the cleaner can be stopped without disturbing the schedule. And — easy to forget — the time clocks must be reset if power is interrupted. After an outage the two clocks drift apart, and a booster that used to start half an hour late can end up starting half an hour early.

Diagnosing one that ran dry

Pentair gives a tell for this that is worth knowing, because the damage is invisible until you have the pump apart:

Replace the impeller and seals if they are warped or discolored. That condition is caused by overheating from the pump running dry.

So a discolored impeller is not cosmetic and it is not age. It is evidence that the pump ran without water, which means the wiring or the time clocks let it — and replacing the parts without fixing that just buys you the same repair next season.

Reassembly has two details the manual is specific about, and both cause leaks when missed:

• The ceramic seal must be perfectly clean, and goes in with the grooved side facing into the center of the rubber gasket. The other way round it leaks.
• Silicone the back of the metal flange on the spring seal and push it down until flush in the center of the seal bracket — while keeping silicone off the seal's contact surface.

Two things about installation

Hose fittings go to 60 inch-pounds, not as tight as they will go. Pentair also suggests heating the hose or using a lubricant if it is cold, which is worth doing rather than forcing it — a kinked or stretched hose is a restriction the pump has to fight for years.

If the pool has solar heating, the in-line tee goes on the return line between the filter and the solar panels, not after them. Panels drain when they are not running, so a tee downstream of them fills with air every time they refill, and that air lock reaches the booster.

Check the prefix before you buy

LA01N is the dealer number. EC-LA01N is Pentair's version approved for online sale, and Pentair's warranty page draws the line at labor rather than at the term: an e-commerce purchase carries one year, parts only, where a standard purchase carries a one-year minimum with parts and labor. The page says it plainly — labor is not covered for internet purchases.

On a booster pump that is worth thinking about carefully, because the failures on this machine are mostly operating failures rather than manufacturing ones — and the manual already says running it without the filter system voids coverage regardless of where it came from. Between the channel and the wiring there are two separate routes to no warranty at all, and only one of them is in your control after purchase.
