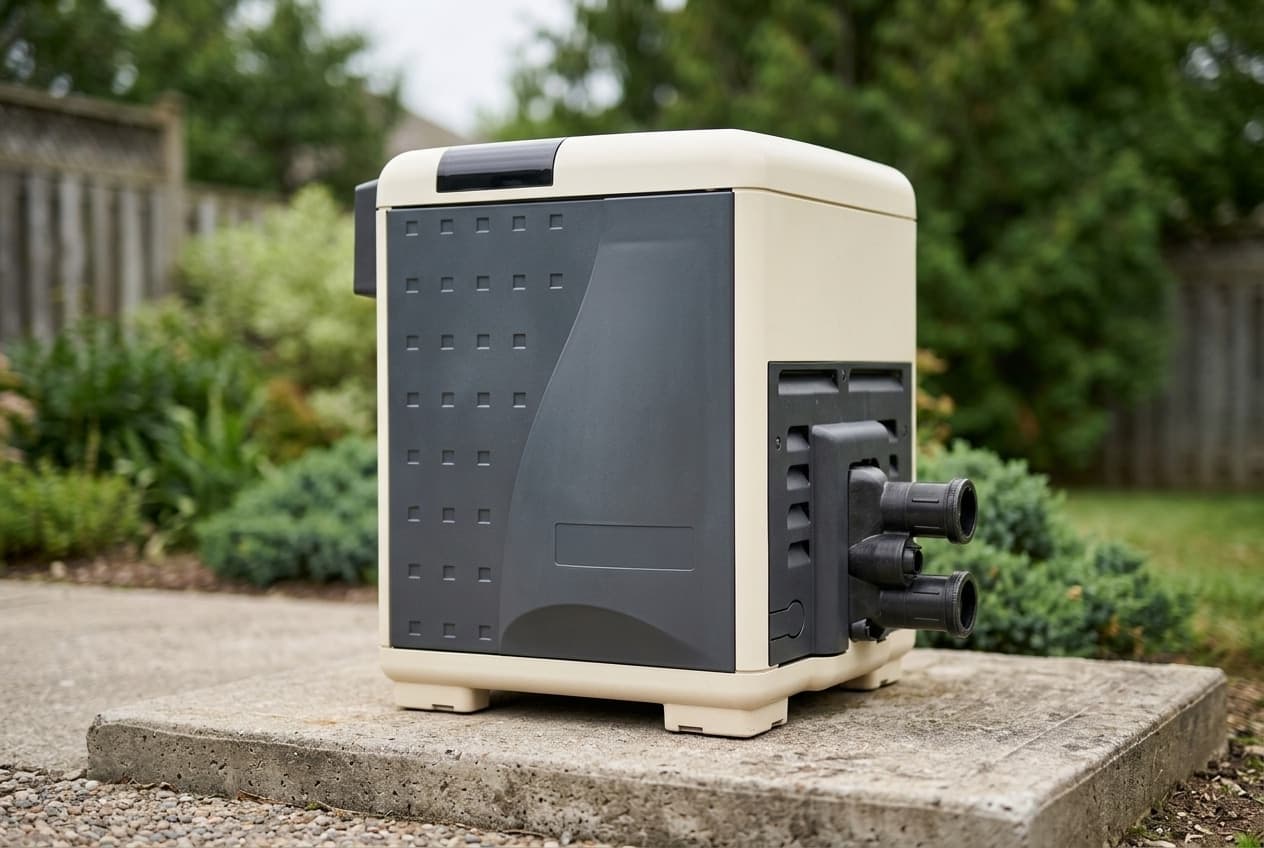

Pentair MasterTemp

MasterTemp is Pentair's atmospheric gas heater, and it comes in five sizes: 175, 200, 250, 300 and 400. The number is not marketing. It is the input rating in thousands of BTU per hour, straight off Pentair's own model table. Pentair's other gas heater, the Sta-Rite Max-E-Therm, is built from most of the same parts in a different cabinet.

That matters because gas heaters are rated by what they burn, not by what they deliver. A MasterTemp 400 burns 400,000 BTU an hour and puts about 336,000 into the water, because the standard copper exchanger is 84% efficient. A heat pump's nameplate is already the delivered figure. Comparing the two numbers side by side makes a heat pump look half the machine it is, and the heater calculator does that conversion for you.

The minimum flow is the spec that catches people

Every model has a floor, and it is not the same floor:

• 175 — 20 GPM minimum
• 200 — 20 GPM minimum
• 250 — 25 GPM minimum
• 300 — 30 GPM minimum
• 400 — 40 GPM minimum

The ceiling is 120 GPM on every one of them.

A MasterTemp 400 needs 40 gallons a minute before it will run. That is the number nobody mentions when they tell you to run a variable-speed pump slowly to save money, and the two pieces of advice collide directly: the speed that makes the pump cheap to run may be below the speed the heater needs to fire at all.

The usual symptom is a heater that will not light, or lights and drops out, on a schedule that worked last season. That is the water pressure switch doing its job rather than failing. Before replacing anything, raise the pump speed and see if it fires. If it does, the fix is a heating speed on the pump schedule, not a part.

Pentair asks for a manual bypass valve above that 120 GPM ceiling, and notes that pumps of 2 HP and larger can push past it.

The heavy-duty version is less efficient, on purpose

This is the counterintuitive one, and it is worth understanding before paying more.

Pentair rates the standard copper heat exchanger at 84% and the heavy-duty cupro-nickel at 82%. The HD model is not a better heater. It is a more corrosion-tolerant one, and you give up two points of efficiency for that tolerance.

So the choice is not "premium or basic". It is about water. Cupro-nickel earns its keep on salt pools, on water that runs aggressive, and anywhere the first exchanger already failed from chemistry rather than age. On balanced water in a chlorine pool, the standard copper exchanger is both cheaper and slightly more efficient, and paying for HD buys you nothing you will notice.

If you do not know whether your water is the problem, the LSI calculator will tell you whether it is aggressive before you spend the money.

Protect the exchanger, because it is most of the heater

The heat exchanger is the expensive part, and it has two common ways of dying early. Both are preventable and neither is age.

Chemicals back-siphoning into it. Pentair requires the chemical feeder to be plumbed downstream of the heater, with a check valve — R172288 — between the two. Without it, concentrated chlorine sits against copper whenever the pump stops. An exchanger that failed in three years usually failed this way, and the check valve costs a rounding error against the coil.

Condensate corroding it from the outside. The thermal regulator bypasses cold water around the exchanger until it is warm enough not to sweat. When it sticks, the heater condenses internally and the water rots the metal from the flue side. Pentair's troubleshooting names a failed thermal governor directly as the cause of sweating, so a heater that drips inside is telling you about a cheap part before it costs you an expensive one.

One more, from the operating instructions: run the filter pump continuously while the heater is on, and for at least five minutes after it shuts off. That post-run is what carries residual heat out of the exchanger instead of leaving it to soak.

Find the manufacture date before ordering anything

The tub was redesigned, and the parts split at the date rather than the model.

Heaters built after 1/12/09 take different numbers from those built before — the heat exchanger most visibly. A 400 built after that date takes 474061; before it, 77707-0234. The 250 takes 474059 or 460747 on the same split. There are two further splits on the ASME versions, at 10/2012 and 11/16/13, and the combustion chamber parts split again between the clamp-lid tub and the nine-bolt lid.

The rating plate has the date. Read it before you order, because the exchanger is the most expensive part on the machine and the one most often ordered twice.

The controls split too, in May 2021. Pentair's 2025-2026 catalog gives heaters made before 5/5/2021 the five-button keypad, 472610Z, and heaters made after 5/6/2021 the six-button RS-485 keypad, 461106. The current manual lists the ignition control module as 476223, the RS-485 control board kit as 461105 and the harness as 461107. The older numbers from Pentair's 2016 parts sheets are still in the list below for older heaters.

One gap worth knowing about: the parts tables inside the owner's manual cover 175/200, 300 and 400 — the 250 is not in them at all. Its numbers are on Pentair's separate parts sheets, which are linked above and which do list it. If you own a 250 and the manual seems to have forgotten your heater, that is why.

Installation is not a DIY job, and the warranty says so

Worth being blunt, because most things on this site are jobs you can do yourself and this one is not.

This is a gas appliance that produces carbon monoxide and flue gases. Pentair's manual opens by saying improper installation or operation can cause serious injury or death, requires installation by qualified personnel, and states that improper installation voids the warranty. For indoor installations it strongly recommends carbon monoxide detectors nearby.

The specifics it sets, if only so you can check what was done: the heater needs a gas supply between 4 and 14 inches of water column, with at least 4 inches while running and no more than a 2-inch drop between static and running. Clearance from combustible surfaces is 6 inches at the top, the exhaust side, the header side and the door panels. Water connects directly to schedule 40 PVC, and the outlet plumbing must contain no shut-off valves or other restrictions.

Diagnosing it, cleaning the filter, checking flow and reading the rating plate are all yours. Gas fitting and venting are not.
