Hayward MaxFlo VS 400
The most efficient pump in Hayward's 400, 600 and 800 series: the pumps it replaces, the torque its seal change needs, and what the LED flashes mean.

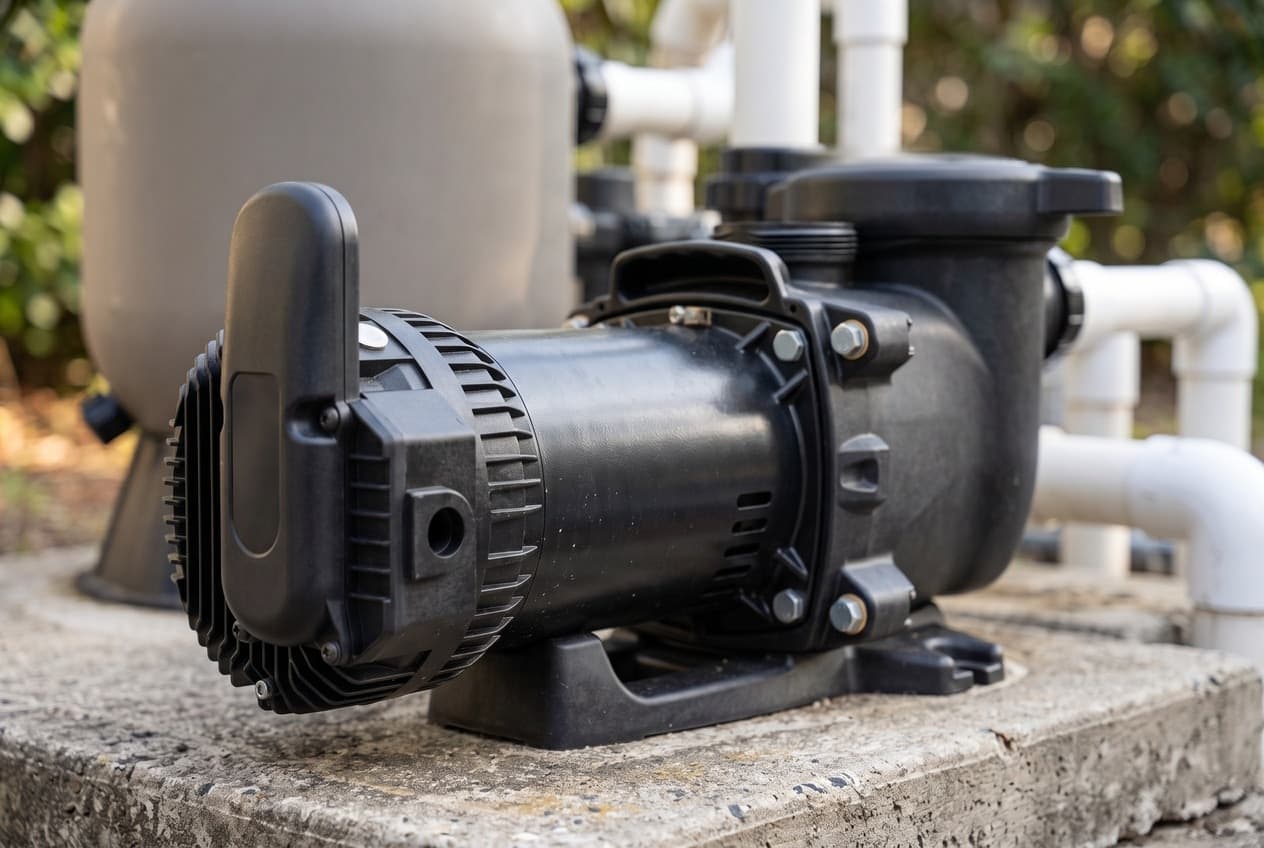

The MaxFlo VS 400 is Hayward's variable-speed MaxFlo with an OmniX module built in, set up and controlled from the OmniX app over Bluetooth. It comes in 1.65 and 2.25 total horsepower, the VSP23415 and VSP23420, with W3 versions sold online. It runs from 600 to 3,450 RPM, on 115 or 230 volts, and plumbs in with 2 x 2 1/2-inch unions.
It's one of three OmniX pump families that share a manual, beside the Super Pump VS 600 and the TriStar VS 800. On Hayward's product pages the VSP23415 has the highest efficiency rating of the seven pumps in those series, WEF 9.6, against 8.5 for the 1.65 HP Super Pump VS and 9.1 for the best TriStar VS 800.
Its wet end is the MaxFlo's. Hayward's parts diagram for the single-speed MaxFlo XL lists the same strainer housing, basket, cover o-ring, diffuser o-ring and screws, housing o-ring, seal, seal plate, hardware pack and motor support, and the same SPX2710CM and SPX2715CM impellers, so an existing MaxFlo's spares and plumbing largely carry over.
1.65 or 2.25 HP
- Efficiency: WEF 9.6 on the VSP23415 and 8.6 on the VSP23420, per Hayward's product pages.
- Head and flow: Hayward's curves put the VSP23415 at about 57 feet with no flow, falling to zero head just short of 100 GPM. The VSP23420 starts at about 64 feet and reaches about 120 GPM. At 30 feet of head, that's roughly 70 GPM against 93.
- Current: both list 19.9 amps at 115 V; at 230 V the VSP23415 draws 10.9 and the VSP23420 14.2.
Check the pipe before choosing the bigger pump. Hayward's chart rates 2-inch pipe for 80 GPM and 2 1/2-inch for 110, and the manual recommends capping the pump's maximum speed so it can't exceed what the plumbing is sized for.
What Hayward says it replaces
Hayward's replacement guide for its OmniX pumps sends these to the MaxFlo VS:
- Pentair SuperFlo, SuperFlo VS and SuperMax VS.
- Sta-Rite SuperMax.
- Jandy FloPro, the FHPM models.
In the guide, every 1 and 1 1/2 HP version maps to the VSP23415, and every 2 and 2 1/2 HP version, along with the variable-speed SuperFlo VS and SuperMax VS, to the VSP23420. Pentair's own SuperFlo has 1.5-inch ports, so check the pipe size before a swap.
Installing and running it
The MaxFlo VS 400 uses the same drive, OmniX module and app as Hayward's Super Pump VS 600 and TriStar VS 800, and Hayward covers all three in one manual, IS3200OX. The TriStar VS 800 page has it in full: placement, wiring, first start-up, the OmniX app, the button, what the LED flashes mean, troubleshooting, care and winterizing. What's specific to this pump, and what matters most:
- Plumbing: use the unions. On any threaded plastic connection, wrap the male threads with one or two layers of PTFE tape, hand-tighten, then give 1 1/2 turns more with a tool, and no more. No pipe dope, which can crack the plastic.
- Wiring: permanently wired, on a GFCI-protected circuit, with a disconnect at least 5 feet from the pool's inside wall, no extension cord, and bonded with No. 8 solid copper. The voltage jumper ships set for 230 V.
- First start: fill the strainer housing, open the valves and the filter's air relief, and stand at least 10 feet away. It primes at 100% speed for 8 minutes by default; if it hasn't primed in 10, stop it and find out why.
- Never run it dry, and never add undiluted chemicals just ahead of the pump's suction. Both damage it and void the warranty.
- LED flashes: one to six flashes mean, in order, voltage out of range, motor current too high, the drive overheated, the pump stalled, an internal motor or drive failure, and lost communication with the module.
- Winter: freezing with water in it voids the warranty. Hayward's steps drain the pump and store it dry, and if you use antifreeze, only propylene glycol.
- The lid: inspect the lid o-ring when you clean the basket, lubricate it with Jack's 327 if needed, and tighten the lock ring by hand only.
Replacing the shaft seal
The MaxFlo's seal change has more torque figures than the other two OmniX pumps. Hayward says only qualified people should do it. With the power disconnected:
- Remove the four 5/16 x 1.75-inch bolts holding the motor to the housing with a 1/2-inch socket, and slide the motor out.
- Remove the three diffuser screws and pull the diffuser off the seal plate.
- Remove the OmniX module, hold the motor shaft with a 5/16-inch hex key in its socket, and unscrew the impeller counterclockwise.
- Remove the four 3/8 x 1-inch bolts holding the seal plate to the motor with a 9/16-inch socket, and press out the ceramic seat.
- Clean everything and lubricate the shaft and seal recess with a mild liquid soap solution. Press the new ceramic seat in, polished face out.
- Bolt the seal plate back on, torqued to 100 inch-pounds. Press the spring seal onto the motor shaft, black face toward the ceramic, and screw the impeller on clockwise, snug. Refit the module.
- Fit the diffuser, lining up its three pins with the holes in the seal plate, flat side of the rim up, and torque its three screws to 20 inch-pounds.
- Slide the motor back without disturbing the diffuser o-ring, with the housing o-ring in place and lubricated. Tighten the four housing bolts alternately and evenly to 185 inch-pounds.
Warranty and where to buy
The VSP23415 and VSP23420 get 3 years parts and 1 year labor through a pool store or service company. The W3 versions are the ones sold online, and the warranty on those depends on which Hayward document you trust: see below. Seals and o-rings are wear items. Keep the receipt, and register the pump for an extra 90 days.
Where Hayward's documents disagree, or are unclear
- The W3 warranty. Hayward's W3VSP23415 and W3VSP23420 pages say 3 years parts and 1 year labor. Hayward's 2026 Open Line terms and warranty page give Open Line products 1 year parts and no labor, with exceptions only for salt cells and TracVac cleaners. The Amazon listing says 1 year parts.
- Length. The manual and sell sheet show the pump 25 1/8 inches long. Hayward's MaxFlo VS with OmniX line drawing says 25 1/2.
- Current at 115 V. The sell sheet gives both sizes the same 19.9 A at 115 V, while the 230 V figures differ. It gives the Super Pump VS 600 identical figures.
- The sell sheet Hayward links is the Canadian bilingual edition, pointing to ca.hayward.com.
- Diffuser screws. The manual shows three, and the online diagram lists them as a 5-pack.
- The replacement guide's edge cases. It sends one Pentair IntelliFlo, 011059, to the VSP23415, where every other IntelliFlo goes to the TriStar VS. It lists Jandy's VSFHP085JEP under VS PlusHP, though its VSFHP prefix matches the VS FloPro models listed below it.
- The seal number. Both the manual and the online diagram give the standard seal as SPX2700SA. Hayward's website has a page for the Viton version, SPX2700SAV, and none for SPX2700SA.
Which model do you have?
The model number is on the pump label. Everything else in the range is shared — these are the parts that change with it.
| Model | HP | SKU | WEF | Amps at 115 / 230 V | Head at no flow | Flow at 30 ft of head | Impeller | Power end | Online version |
|---|---|---|---|---|---|---|---|---|---|
| VSP23415, 1.65 total HP | 1.65 THP | VSP23415 | 9.6 | 19.9 / 10.9 | About 57 ft | About 70 GPM | SPX2710CM | VSX23415PE | W3VSP23415, Open Line |
Note on VSP23415, 1.65 total HP: W3VSP23415 is the Open Line version, approved for online sale. Hayward's pages give both the same specifications. | |||||||||
| VSP23420, 2.25 total HP | 2.25 THP | VSP23420 | 8.6 | 19.9 / 14.2 | About 64 ft | About 93 GPM | SPX2715CM | VSX23420PE | W3VSP23420, Open Line |
Note on VSP23420, 2.25 total HP: W3VSP23420 is the Open Line version, and the one on Amazon. | |||||||||
Hayward MaxFlo VS 400 parts, and what goes wrong
Read off the manufacturer’s parts list and checked before it ships. Open a row for what a bad one actually does — or start from the symptom and work down, which is the cheaper order.
What is it doing?
Hayward says to replace the shaft seal only if it's leaking, and to replace any leaking seal at once: a leak lets chlorinated water into the motor bearings, which wash out and whine. Running the pump dry can damage the seal, and it voids the warranty. The seal comes in two halves, a ceramic seat in the seal plate and a spring seal on the motor shaft, and both polished faces scratch easily. A Viton version is SPX2700SAV. Replace the seal whenever the impeller is replaced.
Hayward's first cause for a motor that hums without starting is an impeller jammed with debris, cleared by a qualified professional. For low flow, a plugged, restricted or damaged impeller is the last cause on its list, replaced with a new seal. Two flashes (motor current too high) and four (pump stalled) both start with checking the impeller, diffuser, shaft seal and motor for binding. The VSP23420's impeller is SPX2715CM. It unscrews counterclockwise, with a 5/16 in. hex key holding the motor shaft through the socket under the OmniX module.
A leaking lid is the first thing Hayward checks on a pump that won't prime. The o-ring must be clean, seated in its groove, and lubricated with Jack's 327, and the cover locked firmly. Hand-tighten the lock ring; no tools. Hayward also says to inspect the cover gasket regularly and replace it as needed. The whole cover, lock ring and o-ring come as SPX2300DLS.
A basket loaded with debris is on Hayward's list for both. Clean it regularly, and don't knock it against anything to empty it. Before opening the lid: stop the pump, close the suction and outlet valves, and release the pressure at the filter's air relief valve.
Six flashes means the pump has lost contact with the module. Check the module's LED is on and its cable is plugged into the pump, then contact Hayward. The pump can run without the module in the meantime, on its single button. To reset the module and unclaim it, hold its connect button about 7 seconds until the LED flashes rapidly, then press it 3 times; the LED then flashes slowly. The module includes the water temperature sensor.
Five flashes is an internal motor or drive failure, which Hayward says may mean replacing the motor and drive assembly; call Hayward Technical Service at (908) 355-7995. Three flashes is the drive overheating: clear the motor's airflow path and check the ambient temperature against the nameplate. The manual says the power end includes items 7 to 15 and 19: the diffuser o-ring, screws and diffuser, impeller, housing o-ring, seal, seal plate, the power end itself, motor bolts and OmniX module. The VSP23420's is VSX23420PE.
If you are doing the job anyway
Once the motor is out of the housing, the o-rings it passes are the cheap parts to replace.
Shaft seal replacement
The seal change slides the motor out of the housing and takes the diffuser off. Hayward says to inspect the gaskets and replace any that are damaged, to have the housing o-ring in place and lubricated when the motor goes back, and not to disturb the diffuser o-ring.
- Shaft seal assemblySPX2700SA
- GMX600FGMX600F
- SX220Z2SX220Z2
Hayward MaxFlo VS 400 manuals and documentation
Hosted by the manufacturer. These open on Hayward’s own servers, so they stay current.
- 400/600/800 Series variable speed pumps owner's manual (IS3200OX Rev. B, 2026)manual
- 400/600/800 Series quick start guide (QRG3200OX Rev. B)guide
- MaxFlo VS 400 sell sheet (LITMFVS400X25C, Canadian bilingual edition)spec
- MaxFlo VS 400 performance curvescurves
- Replacement product guide, VS pumps with OmniX (LITRPGVSX25)guide
- MaxFlo VS with OmniX line drawing, sidespec
- VSP23415 product page — specifications and the interactive parts diagramdiagram
- W3VSP23420 product page (Open Line)spec
- Hayward 2026 Expert Line warranty termsspec
- Hayward 2026 Open Line warranty termsspec
Hayward MaxFlo VS 400 warranty
3 years parts, 1 year labor
Three years parts and one year labor on the Expert Line VSP23415 and VSP23420, per their product pages and Hayward's 2026 Expert Line terms, where a Hayward Rewards dealer can extend field labor to two years. The Open Line W3 versions are where the documents part company: their product pages also say three years parts and one year labor, but Hayward's 2026 Open Line terms and its warranty page give Open Line products one year parts and no labor, and name no exception for pumps. The Amazon listing for the W3VSP23420 says one year parts only. The manual adds four things that void the warranty: running the pump dry, adding undiluted chemicals just ahead of its suction, letting it freeze with water in it, and using non-Hayward replacement parts. Pump seals and o-rings are wear items in Hayward's terms, covered for manufacturing defects only. Hayward's warranty page also requires the pump to come from Hayward or an authorized seller, starts coverage no earlier than delivery, and adds 90 days for registering.
Manufacturer’s termsHayward MaxFlo VS 400 complete parts list
Every part on the manufacturer’s exploded diagram, in their numbering. Marked rows are the ones covered above with a symptom and a diagnosis.
22 parts
| No. | Part | Description | Note |
|---|---|---|---|
| 1 | SPX2700UNKIT | Union connector kit: 2 nuts, connectors and gaskets | |
| 2 | SPX4000FG | Drain plug with o-ring | |
| 3 | SPX2300AA | Pump strainer housing with drain plugs | |
| 4 | SPX2300DLS | Strainer cover kit: cover, lock ring and o-ring | |
| 5 | SPX2300Z4 | Strainer cover o-ring what goes wrong | |
| 6 | SPX2300M | Strainer basket what goes wrong | |
| 7 | SX220Z2 | Diffuser o-ring | |
| 8 | SPX3200Z8 | Diffuser screws | 5-pack on Hayward's online diagram; the pump takes 3 |
| 9 | SPX2300B | Diffuser | |
| 10A | SPX2710CM | Impeller, 1.65 THP what goes wrong | VSP23415 |
| 10B | SPX2715CM | Impeller, 2.25 THP | VSP23420 |
| 11 | GMX600F | Housing o-ring | |
| 12A | SPX2700SA | Shaft seal assembly what goes wrong | |
| 12B | SPX2700SAV | Shaft seal assembly, Viton | |
| 13 | SPX2300E | Seal plate | |
| 14A | VSX23415PE | Power end, 1.65 HP what goes wrong | VSP23415 |
| 14B | VSX23420PE | Power end, 2.25 HP | VSP23420 |
| 15 | SPX3200Z5PAK4 | Motor bolts, pack of 4 | |
| 16 | SPX2700ZPAK | Hardware pack: 4 housing bolts, seal plate spacers and square nuts | |
| 17 | SPX1600Z52 | Motor support base mount screws | |
| 18 | SPX2300G | Motor support, VSP, with base mount screws | |
| 19 | VSPOMNIX | OmniX module what goes wrong |
