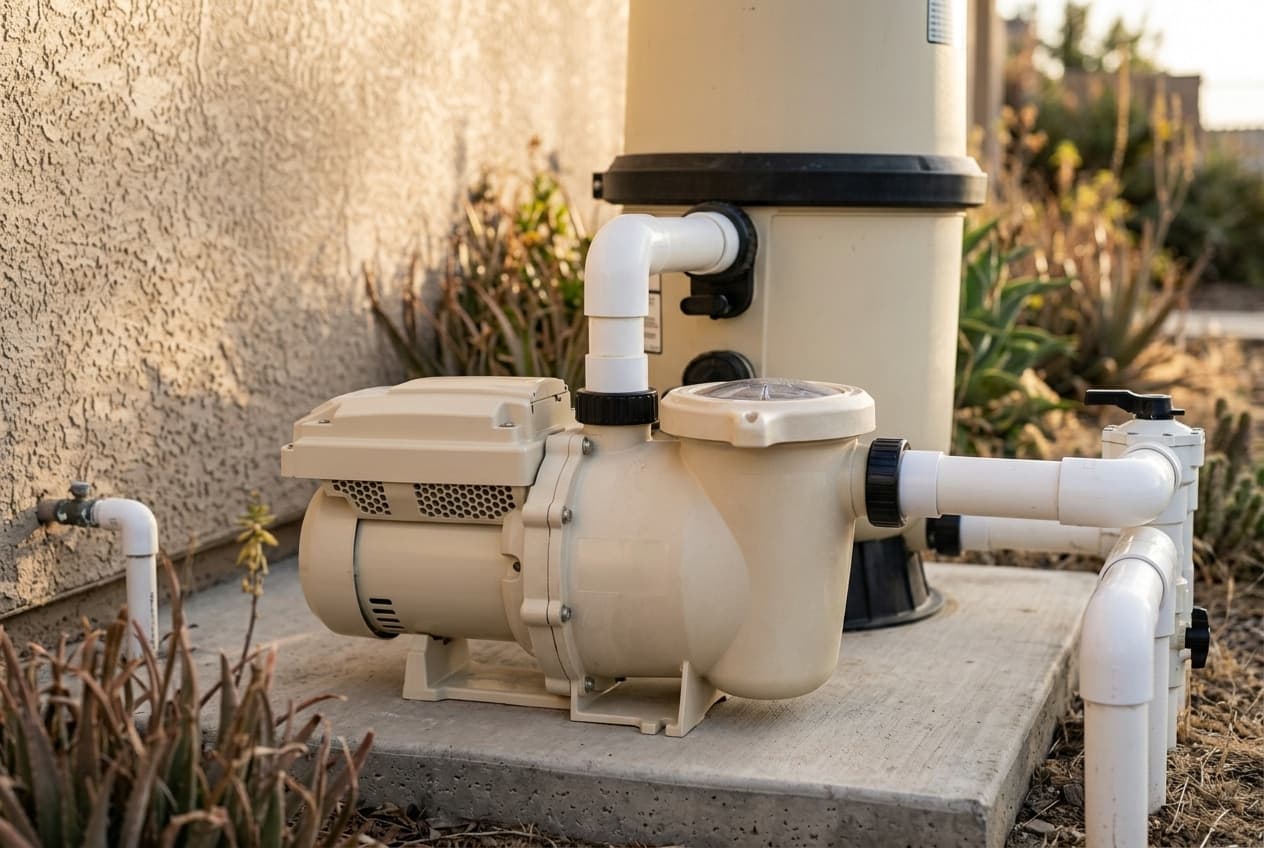

Pentair IntelliFlo3 VSF

The IntelliFlo3 is the pump the rest of the industry is measured against, and the reason is not the motor. It is that a variable-speed pump run slowly for longer costs a fraction of what a single-speed pump costs to move the same water, and this is the one most likely to be quoted to you when the old pump dies.

It comes in two horsepower tiers, 1.5 and 3.0, and choosing between them is where most of the money is won or lost.

Almost nobody needs the 3 HP

This is the most useful thing on the page, so it goes first.

The 3 HP model exists for large pools, long plumbing runs, in-floor cleaning systems and water features that genuinely need the head. A normal residential pool with 2-inch plumbing does not, and buying it "for headroom" is buying a bigger motor to run it slower.

The WEF numbers say this out loud: the 1.5 HP model is rated 9.4, the 3 HP model 7.1. Higher is more efficient. The smaller pump is the more efficient machine, and it is cheaper to buy.

There is a wiring difference underneath that, and it can decide the job. The 1.5 HP will run on 115V or 208–230V. The 3 HP is 208–230V only. If the old pump was on a 115V circuit, the smaller pump drops straight in and the bigger one means an electrician.

Work out the flow you actually need before choosing, because pump sizing is decided by turnover and pipe diameter rather than by horsepower, and the answer for most pools is smaller than what gets quoted.

IntelliFlo3 or IntelliPro3

Pentair sells this pump under two names, and the pump is the same.

IntelliFlo3 is the retail version. IntelliPro3 is the TradeGrade version, sold through pool professionals. They share one installation manual — Pentair documents them together, which tells you how alike they are — and the parts in the table below fit both.

What differs is the channel and what comes with it: warranty terms and support depend on which version you bought and who installed it. Pentair does not publish those terms in the manual, so check them before buying rather than after. If a quote says IntelliPro3, you are not being offered a lesser pump.

The parts that change with horsepower

Fewer parts change than you would expect, but the ones that do are the expensive ones.

Ten of the thirty-five numbered items in Pentair's parts list differ between the tiers. Six are the wet end: impeller (356176z against 356177z), diffuser (356155z / 356156z), strainer basket (074162z / 400007z), strainer pot kit and the seal plate kit with its o-ring (356148z / 356173z). Four are the motor: the drive and drive hardware kit (356162z / 356163z), the motor kit itself (356164s / 356165s), the motor shroud and the motor fan (356232z / 357866z).

The seal kit that bundles the wet-end o-rings follows the pump: 357871 for the 1.5, 357872 for the 3.

Everything else is shared, and that is most of the pump. The whole drive assembly is common — drive cover, field wiring compartment, controller kits, touchscreen and its lid, relay control board, antenna, connectors, motor bracket, motor foot kit, motor bolts and bonding lug all carry one number for both tiers. So does the shaft seal (356210s), the lid assembly and lid o-ring, the diffuser screws and o-ring, and the drain plug and its o-ring. If a touchscreen dies, the same 356159z fixes either pump.

Two things are worth noticing beyond the numbers. The seal plate bolts are the same part but not the same count — six on the 1.5, eight on the 3. And the unions are a different arrangement rather than a different size: the 1.5 takes union kit 351157 with a plain o-ring, while the 3 takes a 2 inch / 2.5 inch kit (410028) or a 3 inch kit (410029) with a diamond-seal o-ring.

That matters when ordering, and the impellers make the point: 356176z and 356177z, one digit apart and not interchangeable. Check the table below before you order, not after — and note that most of the almond and black part numbers in it are finish options, not horsepower options.

Variable speed only pays if you run it slowly

The trap with any variable-speed pump is running it like the single-speed it replaced.

The savings come from the physics: halve the speed and the power drops by roughly a factor of eight, so a pump at 1,200 RPM for twelve hours costs dramatically less than the same pump at full speed for four — and filters better while it does it, because water spends longer in the media.

Run time and speed is where the energy saving actually lives. A pump like this set to full speed on a timer is an expensive way to own a single-speed pump.
